| Type | Dimension(mm) | ||
| Fw | D | C | |
| DL610 | 6 | 12 | 10 |
| DL810 | 8 | 14 | 10 |
| DL91412 | 9 | 14 | 12 |
| DL1012 | 10 | 16 | 12 |
| DL1210 | 12 | 18 | 10 |
| DL1212 | 12 | 18 | 12 |
| DL1312 | 13 | 19 | 12 |
| DL1412 | 14 | 20 | 12 |
| DL1512 | 15 | 21 | 12 |
| DL1612 | 16 | 22 | 12 |
| DL1712 | 17 | 23 | 12 |
| DL172312P | 17 | 23 | 12 |
| DL1812 | 18 | 24 | 12 |
| DL1816 | 18 | 24 | 16 |
| DL182416P | 18 | 24 | 16 |
| DL2012 | 20 | 26 | 12 |
| DL2016 | 20 | 26 | 16 |
| DL2216 | 22 | 28 | 16 |
| DL2516 | 25 | 33 | 16 |
| DL2520 | 25 | 33 | 20 |
| DL2820 | 28 | 36 | 20 |
| DL3016 | 30 | 38 | 16 |
| DL3020 | 30 | 38 | 20 |
| DL3025 | 30 | 38 | 25 |
| DL354216P | 35 | 42 | 16 |
| DL3516 | 35 | 43 | 16 |
| DL3520 | 35 | 43 | 20 |
| DL4016 | 40 | 48 | 16 |
| DL4020 | 40 | 48 | 20 |
| DL4416 | 44 | 52 | 16 |
| DL455216P | 45 | 52 | 16 |
| DL4716 | 47 | 55 | 16 |
| DL5012 | 50 | 58 | 12 |
| DL5018 | 50 | 58 | 18 |
| DL5020 | 50 | 58 | 20 |
| DL5520 | 55 | 63 | 20 |
Contact:
Phone:
Tel: +8651986399561
Email: ps@psbearings.com
Add: No.2 Hengxi Road, Niutang Town, Changzhou 213168, China

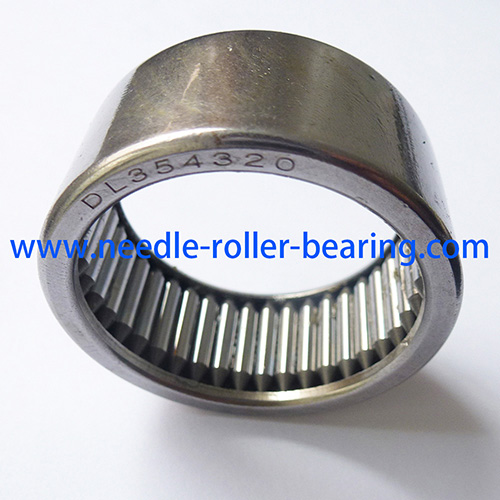

PS Needle Roller Bearing
